Waterjet cutting machine

Waterjet cutting systems are used when thermal influences on the material are unwanted and highest precision is required. They convince with flexible processing options for a multitude of cutting tasks on a wide variety of materials.





Wasserstrahlschneidanlagen

Structure of a waterjet cutting system in gantry design



Gantry with tool stations, guideways and cutting table

Gantry cutting systems with waterjet technology consist of a steel gantry driven on both sides and mounted on guideways, a so-called gantry beam. The tool stations (waterjet cutting head, drilling support, scanner, etc.) are located on this beam, which can be positioned vibration-free and accurate to a few hundredths of a millimeter thanks to its solid construction. A stable waterjet cutting table is positioned within the guideways, on which the workpieces are placed and processed. All components of the waterjet system are hard chrome-plated to protect against corrosion and abrasive.

Touch display with machine control

On a main monitor, the waterjet cutting machine is controlled and the cutting tasks are programmed.

High pressure pump

An external high-pressure pump provides the required waterjet pressure.

Abrasive conveyor systems

If required, the waterjet cutting machine contains an abrasive agent container which transports the abrasive agent (abrasive mixed with the waterjet) to the waterjet cutting head depending on the dosage setting.

Advantages of a waterjet cutting machine

Advantages compared to other cutting methods

  • Flexibility: processing of almost any material possible
  • Material preserving cutting process: no thermal influences
  • Clean cut edges and no structural changes
  • Low environmental impact: no formation of dust and vapours
  • Efficiency: possible parallel cutting operation with several cutting heads

CNC waterjet cutting with and without abrasive

When using waterjet technology, a distinction is made between two possible variants: cutting with abrasive material and cutting with pure water.

A so-called abrasive material is garnet sand which is added to the waterjet and thus ensures a higher abrasion of the material. This process is mainly used for working hard metals, plastics and types of stone.

Soft or very thin materials are cut with pure water.

Up to date

With our newsletter you will be informed about all the latest novelties.

Waterjet cutting systems in action

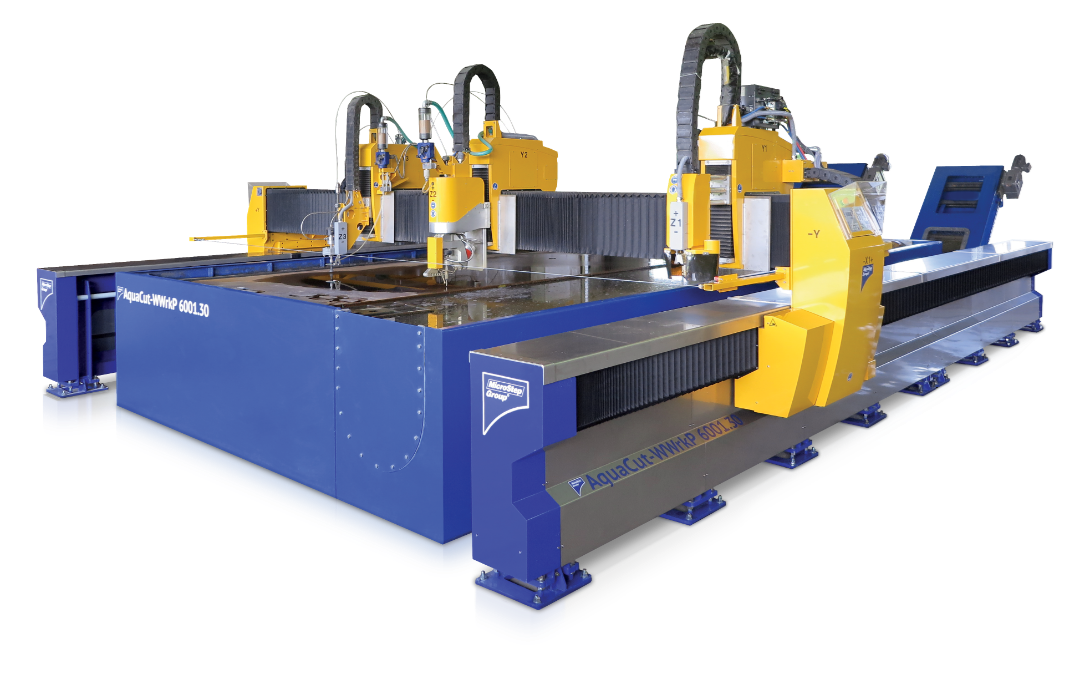

The AquaCut series is a high-precision CNC waterjet cutting machine designed to process almost any material without thermally affecting it through the cutting process.
With the 2D cutting head, delicate cuts can be made on almost any material – whether steel, stone, glass, corrugated cardboard or plastics.

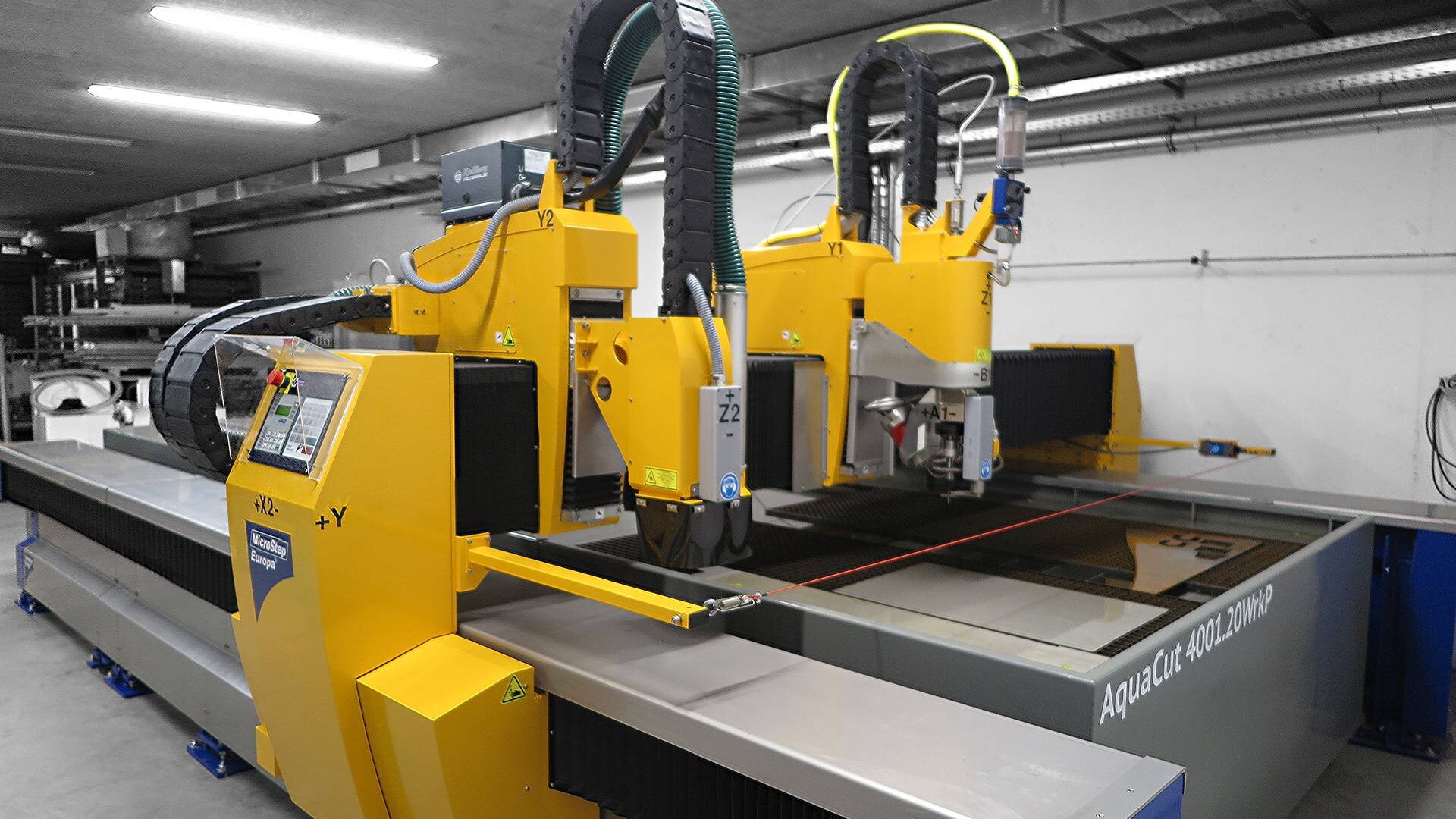

This means that two identical orders can be processed in parallel cutting operation and thus the production speed can be increased.
3D cutting with the AquaCut series from MicroStep

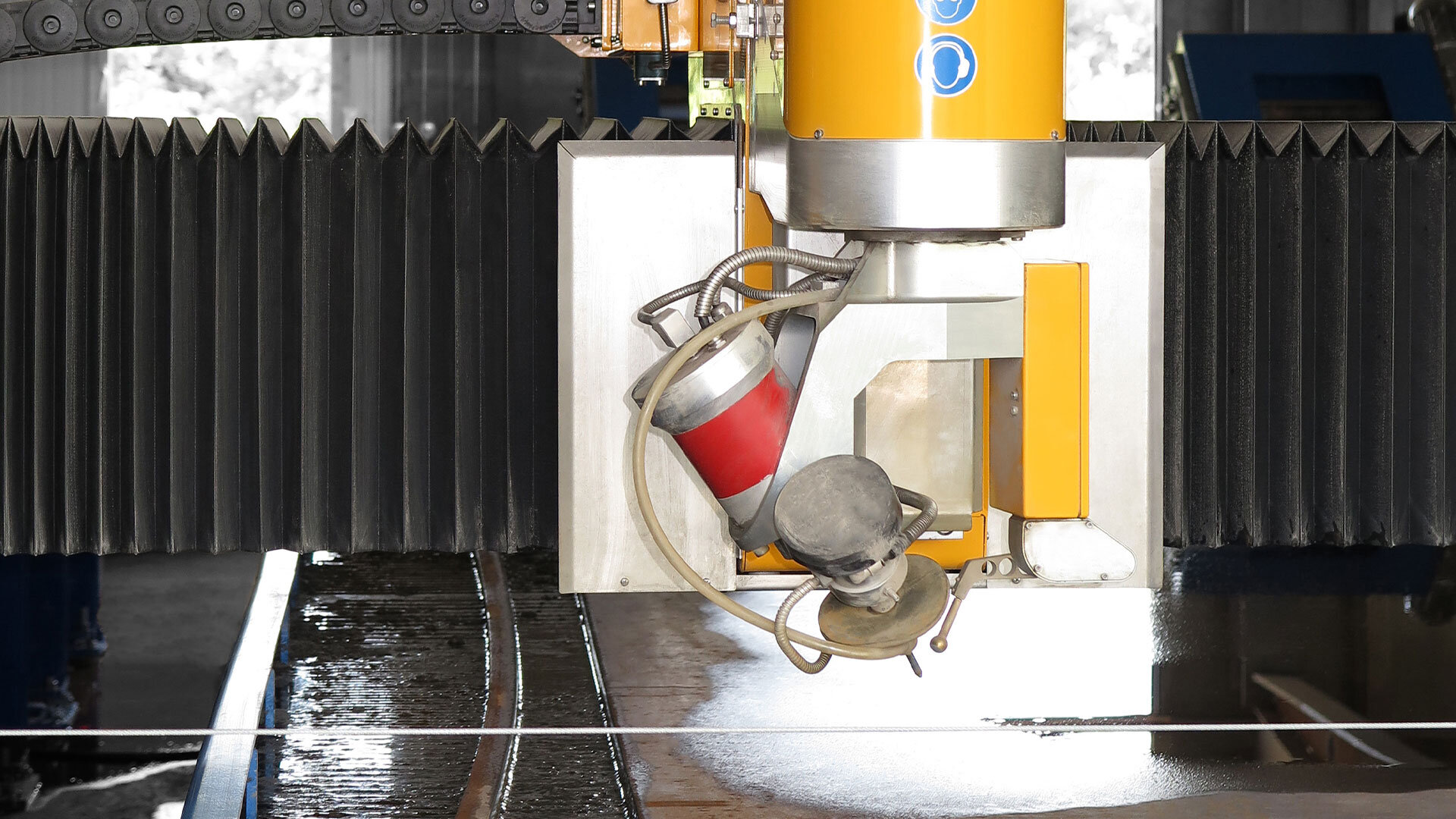

With the help of a waterjet rotator from MicroStep, extremely precise inclined cuts as well as vertical cuts can be performed.



Which materials can be processed with a waterjet cutting machine?

Waterjet cutting is a flexible process and enables the cutting of a wide range of materials: from hard metal and rock plates to deep-frozen food and delicate printed circuit boards.
Wasserjet cutting

Multifunctionality & automation

Waterjet cutting machines can be equipped for parallel cutting operation with several waterjet cutting heads or even with several waterjet rotators, thus ensuring a cost-effective increase in productivity. Options for marking or scanning workpieces can also be implemented on the waterjet systems. In the case of a solution with abrasive in the waterjet, a desludging system for automated discharge of the granulate can considerably facilitate the work. It is further possible to equip the series with a 2D plasma cutting head – for an even more economical processing of cutting tasks.
Multifunctionality

Strenghts of MicroStep's waterjet cutting systems

The CNC waterjet cutting systems from MicroStep are highly precise, reliable and space-saving thanks to their compact design. The waterjet systems enable the cutting of almost all materials – without exposing them to thermal influences. Further advantages of the MicroStep cutting machines are:

  • High-precision cuts for material thicknesses of up to 150 mm
  • Robust system components
  • Different versions of the cutting table
  • Intuitive software and control
  • High safety standards for machine operators



Waterjet cutting systems in various industries

Waterjet cutting systems are suited for cutting tasks where a thermal influence is undesirable and the highest precision is required. Therefore, this process is used in industries that place great value on delicate cuts.





Wasserstrahlanlagen

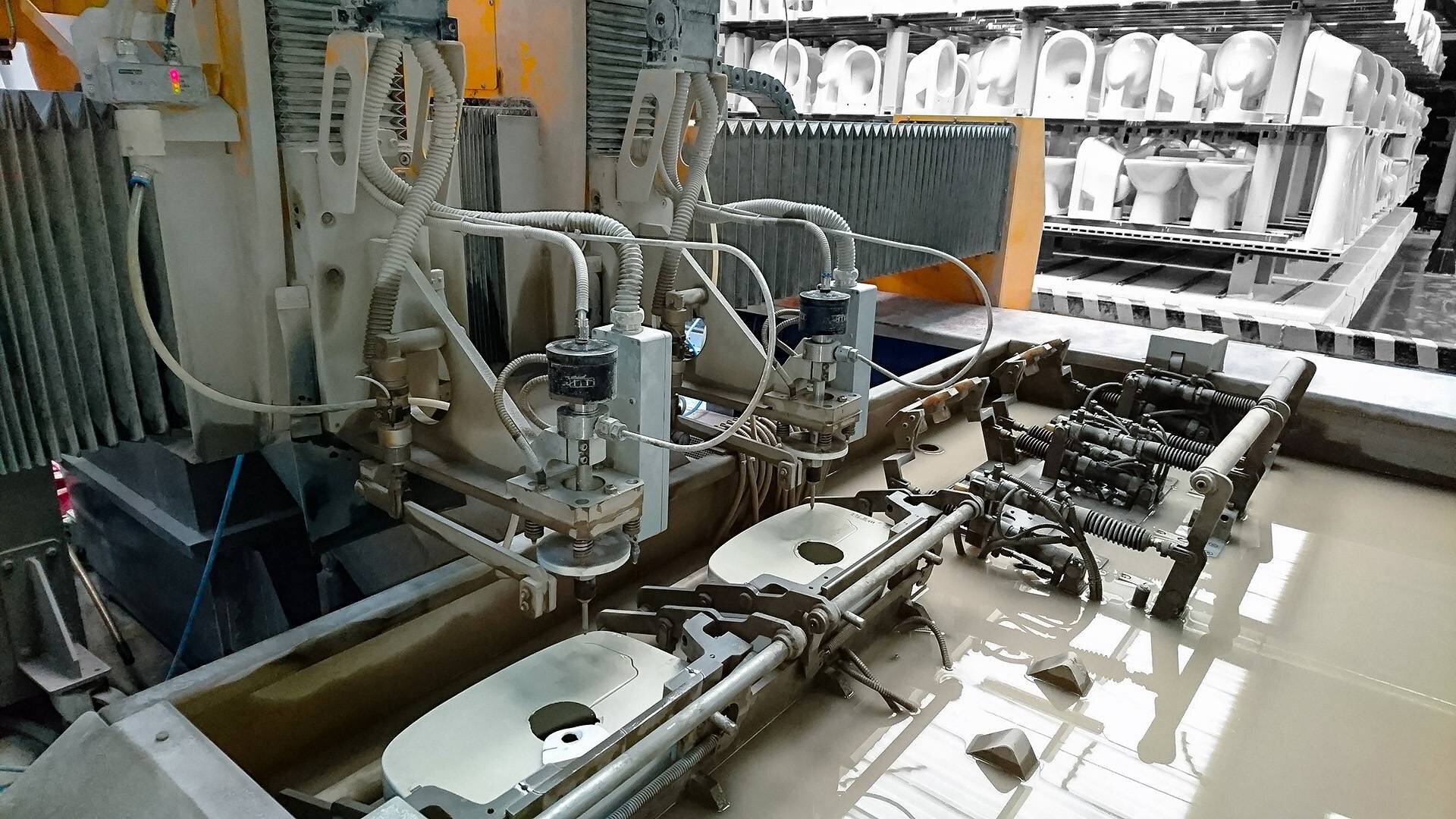

  • Automotive industry: material processing in the high-tech segment as well as in mass production, prototype construction, airbag and composite parts cutting
  • Precision engineering: manufacturing of small parts in the watch and jewellery industry
  • Semiconductor industry: cutting and separating lead frames, cutting through copper wires, cutting SD cards
  • Food industry: Cutting of deep-frozen food





Overview of MicroStep's waterjet cutting systems

Die AquaCut Baureihe

The AquaCut series

The AquaCut series enables high-precision cuts of almost all materials without affecting them thermally. Thanks to numerous options, such as additional marking and drilling units, the waterjet system, which can also be equipped with plasma supports, meets all requirements for flexibility, efficiency and precision.

  • 2D cutting
  • Bevel cutting
  • Drilling, tapping, countersinking
  • Marking
  • Pipe & profile processing
  • Automation
  • Scanning
AquaCut
Die Watercut Baureihe

The WaterCut series

Without thermal influence, almost any material can be cut and processed with a WaterCut waterjet cutting system. Whether steel, stone, glass or wood – the cutting machine enables precise cuts even in parallel cutting operation with a second waterjet cutting head.

  • 2D cutting
  • Marking
  • Scanning
WaterCut
