The press brake of the EUROMASTER series

The EUROMASTER series from MicroStep Europa and our technology partner ACCURL is economical to purchase and works accurately and reliably. Even the basic version of the series has movable support arms and ACCURL® quality tool clamps, type PROMECAM. In addition, material handling to and from the system can be automated in conjunction with a robot.

Sheet processingMaterial handling automated

Features

Pressing force: Broad spectrum covered

Pressing force: Broad spectrum covered

The EUROMASTER series can be flexibly configured and equipped with a pressing force of between 800 and 4,000 kN, depending on...

State-of-the-art control technology from the quality manufacturer Delem

State-of-the-art control technology from the quality manufacturer Delem

The standard version of the series is equipped with the latest CNC control technology from the renowned manufacturer Delem: The...

High flexibility: backgauge with up to 6 axes

High flexibility: backgauge with up to 6 axes

The backgauge of this series already includes four CNC-controlled axes as standard: X, R, Z1, Z2. This ensures a very high...

Sustainability & efficiency: electro-hydraulic press drives

Sustainability & efficiency: electro-hydraulic press drives

The EUROMASTER series is equipped with an innovative electro-hydraulic system that intelligently combines the advantages of two...

Top-level mechanical engineering thanks to 3D CAD modeling techniques

Top-level mechanical engineering thanks to 3D CAD modeling techniques

Thanks to the most advanced 3D CAD modeling techniques, including analysis tools, stresses and deformations can be virtually...

Precision: Constant bending angle over the entire length

Precision: Constant bending angle over the entire length

The high-precision ePrAX® control electrohydraulic system works in perfect coordination with the CNC-controlled ACCURL...

Integrated tool store

Integrated tool store

Particularly practical: A tool store can be integrated into the side panel of the press brake series, which means that the most...

Highly dynamic safety equipment

Highly dynamic safety equipment

Maximum safety with minimum loss of time: The bending machines are equipped with a visible laser barrier. This IRIS safety...

Remote Diagnostics

Remote Diagnostics

Thanks to powerful remote maintenance solutions, MicroStep Europe provides fast and efficient support via remote access. Most...

Training & expert support: Guarantee for high machine availability

Training & expert support: Guarantee for high machine availability

To get the maximum efficiency out of your cutting system, perfectly trained operating personnel is essential. They ensure...

Technical specifications

Length 3,700 to 5,200 mm
Width (= Depth)  1,900 to 2,150 mm
Height 2,870 to 3,300 mm
Pressing force 800 to 4,000 kN
Bending length 2,500 to 4,200 mm
Standard stroke (= Hub) 260 to 350 mm
Installation height 480 to 600 mm
Table width 100 mm

Rapid speed 170 to 220 mm/s
Working speed 0 to 10 mm/s
Return speed 170 to 220 mm/s
Motor power 8,8 to 30 kW

X-axis travel  600 mm
X-axis speed 600 mm/s
R-axis travel 200 mm
Z-axis speed 800 mm/s

Weight 6,800 to 19,500 kg

Control

Control technology from Delem

Control technology: Only the finest

The standard version of the EUROMASTER series is equipped with the latest CNC control technology from the renowned manufacturer Delem: The new generation of DA-Touch controls offers a very high degree of efficiency in the programming, operation and control of press brakes. Convenient operation combined with state-of-the-art technology ensures maximum productivity.



The touchscreen enables access to the proven Delem user interface and also direct navigation between programming and production. Functions are located directly where they are needed, with optimized ergonomics throughout the application. DA-Touch series control systems offer either 2D or 3D programming, depending on the option selected, which includes automatic calculation of the bending sequence and collision detection.



The overall 3D machine setup includes multiple tool stations and provides instant feedback on product feasibility and handling. Highly efficient control algorithms optimize the machine cycle and reduce the time required for set-up. This makes the use of press brakes easier, more efficient and more versatile than ever.

Alternatively, control systems from the manufacturer ESA are also available.


Media

 EUROMASTER: High-precision and reliable bending

EUROMASTER: High-precision and reliable bending

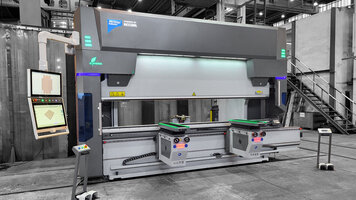

 Bending machine

Bending machine
